Product series · JET
Surface-mounted self-priming pumps for clean-water supply, transfer and small irrigation systems.
Typical use
Selection note
Suction lift, airtight pipework, priming arrangement and total dynamic head must be checked at the same duty point.
Source scope
9 models across 2 outlet or configuration ranges.

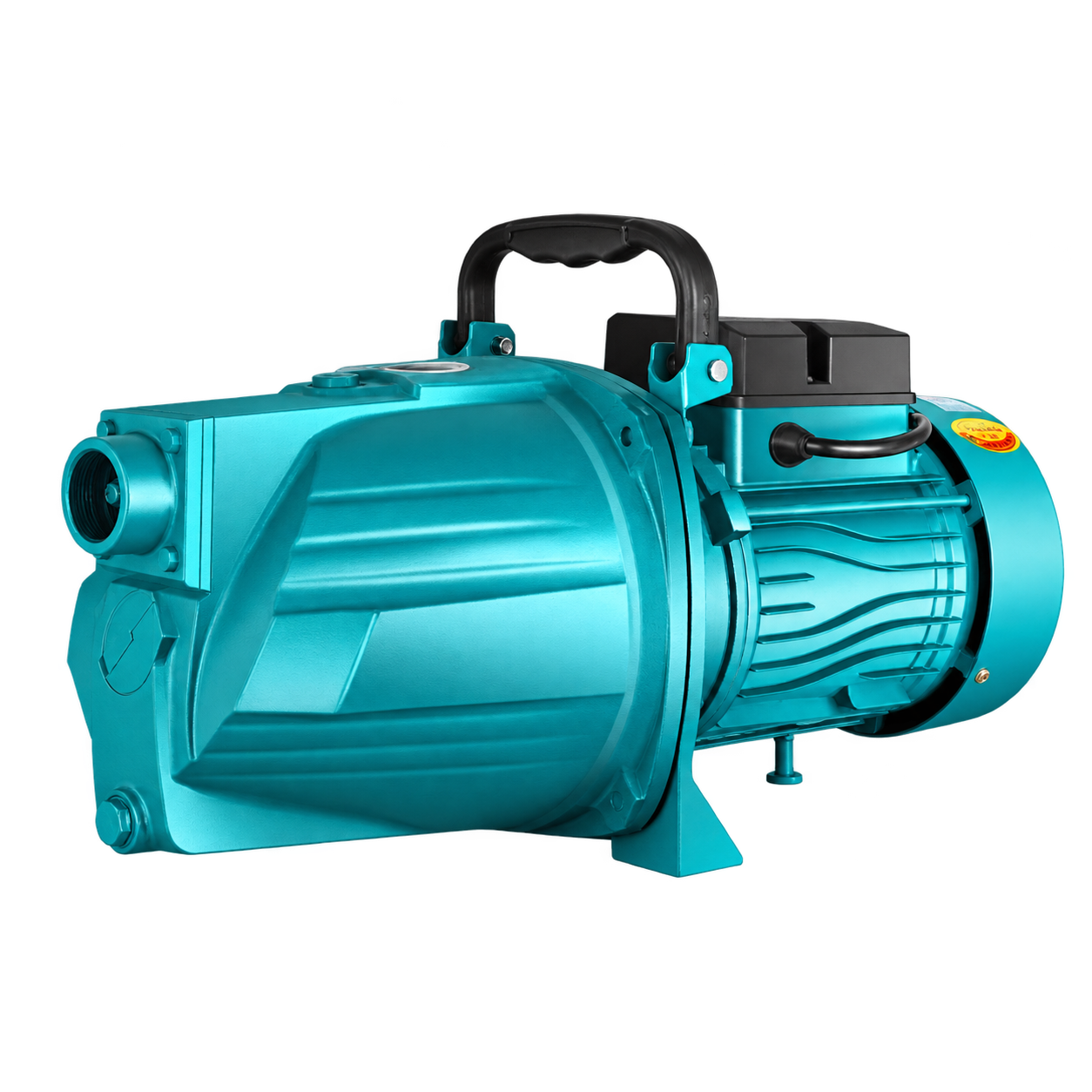

Product gallery
Appearance, labels, controller and supplied accessories can vary by model and order scope.
Technical data
Values below are transcribed from the supplied source deck. A slash indicates multiple published values. Confirm the final datasheet and certified curve in the quotation.
5 listed models
| Model | P(kW) | MaxQ(m³/h) | MaxH(M) | MAXSUCT | V50HZ | L ，W，H(MM) |
|---|---|---|---|---|---|---|
| JET-1100 | 1.1 | 3 | 45 | 9 | 220/380 | 470x190x190 |
| JET-1500 | 1.5 | 4 | 50 | 9 | 470x190x190 | |
| JET-1800 | 1.8 | 5 | 55 | 9 | 470x190x190 | |
| JET-2200 | 2.2 | 6 | 65 | 9 | 510x210x210 | |
| JET-3000 | 3 | 7 | 75 | 9 | 510x210x210 |
Indicative curves are constructed from the supplied maximum head at Q = 0 and maximum flow at H = 0. Confirm the certified model curve before final selection.
4 listed models
| Model | P(kW) | Max Q(m³/h) | Max H(M) | MAXSUCT | Voltage(V) | L ，W，H(MM) |
|---|---|---|---|---|---|---|
| 40JET-2200 | 2.2 | 9 | 60 | 9 | 180-240V380-415V | 510x210x210 |
| 40JET-3000 | 3 | 12 | 70 | 9 | 510x210x210 | |
| 50JET-2200 | 2.2 | 15 | 40 | 9 | 510x210x210 | |
| 50JET-3000 | 3 | 18 | 45 | 9 | 510x210x210 |
Indicative curves are constructed from the supplied maximum head at Q = 0 and maximum flow at H = 0. Confirm the certified model curve before final selection.
