Product series · QD

QD Multistage Submersible Pumps

Multistage submerged pumps intended for higher-head clean-water lifting in wells, tanks and irrigation systems.

Typical use

Higher-head water lifting
Well and tank supply
Irrigation transfer

Selection note

Confirm well or tank geometry, static and dynamic water levels, required duty point, cable length and available power supply.

Source scope

6 models across 2 outlet or configuration ranges.

Product gallery

Representative configurations.

Appearance, labels, controller and supplied accessories can vary by model and order scope.

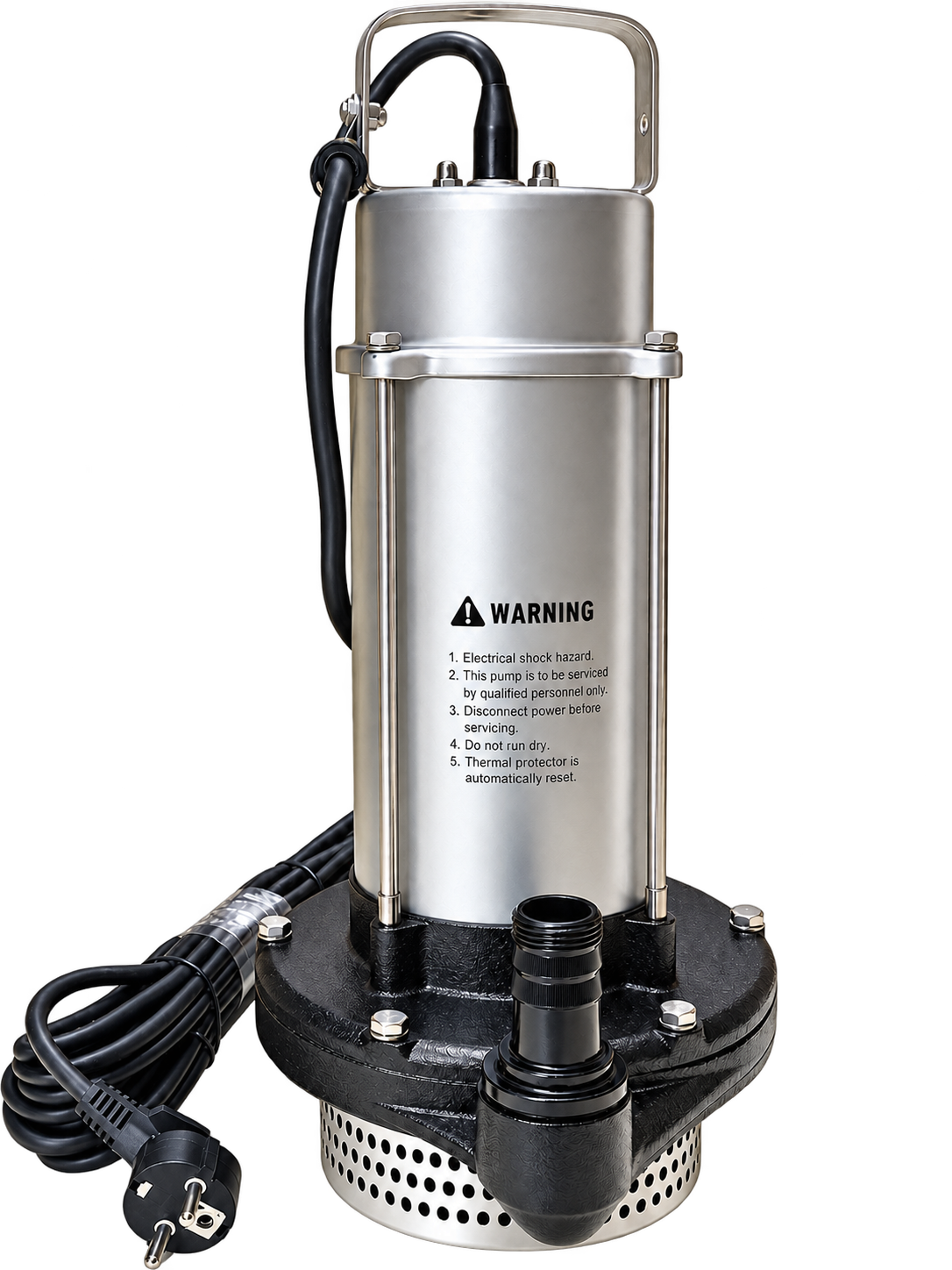

QD Multistage Submersible Pumps product view

Technical data

Models from the supplied catalogue.

Values below are transcribed from the supplied source deck. A slash indicates multiple published values. Confirm the final datasheet and certified curve in the quotation.

Range 05

QD Multistage Submersible Pump -DN25

4 listed models

Model	Power(kW)	MAX Q(m³/h)	MAX H(m)	Voltage(V)	Power cord(m)
QD6-40/2-1.1	1.1	6	40	180-240V/380-415V	15
QD6-45/3-1.5	1.5	6	45	180-240V/380-415V	15
QD6-62/4-1.8	1.8	6	62	180-240V/380-415V	15
QD6-78/5-2.2	2.2	6	78	180-240V/380-415V	15

Model performance referenceCurves start at Q = 0

Indicative curves are constructed from the supplied maximum head at Q = 0 and maximum flow at H = 0. Confirm the certified model curve before final selection.

Range 06

QD Multistage Submersible Pump -DN50

2 listed models

Model	Power(kW)	MAX Q(m³/h)	MAX H(m)	Voltage(V)	Power cord(m)
QD/Q15-26-1.8	1.8	15	26	180-240V/380-415V	15
QD/Q15-40-2.2	2.2	15	40	180-240V/380-415V	15

Model performance referenceCurves start at Q = 0

Indicative curves are constructed from the supplied maximum head at Q = 0 and maximum flow at H = 0. Confirm the certified model curve before final selection.
