QDX Submersible Pumps

Portable clean-water submersible pumps covering DN25 to DN100 outlets for irrigation, drainage and general water transfer.

Request model confirmation

Typical use

Farm and garden irrigation
Tank and pit drainage
General clean-water transfer

Selection note

Confirm required flow and total head, outlet size, immersion depth, voltage and cable length before ordering.

Source scope

20 models across 4 outlet or configuration ranges.

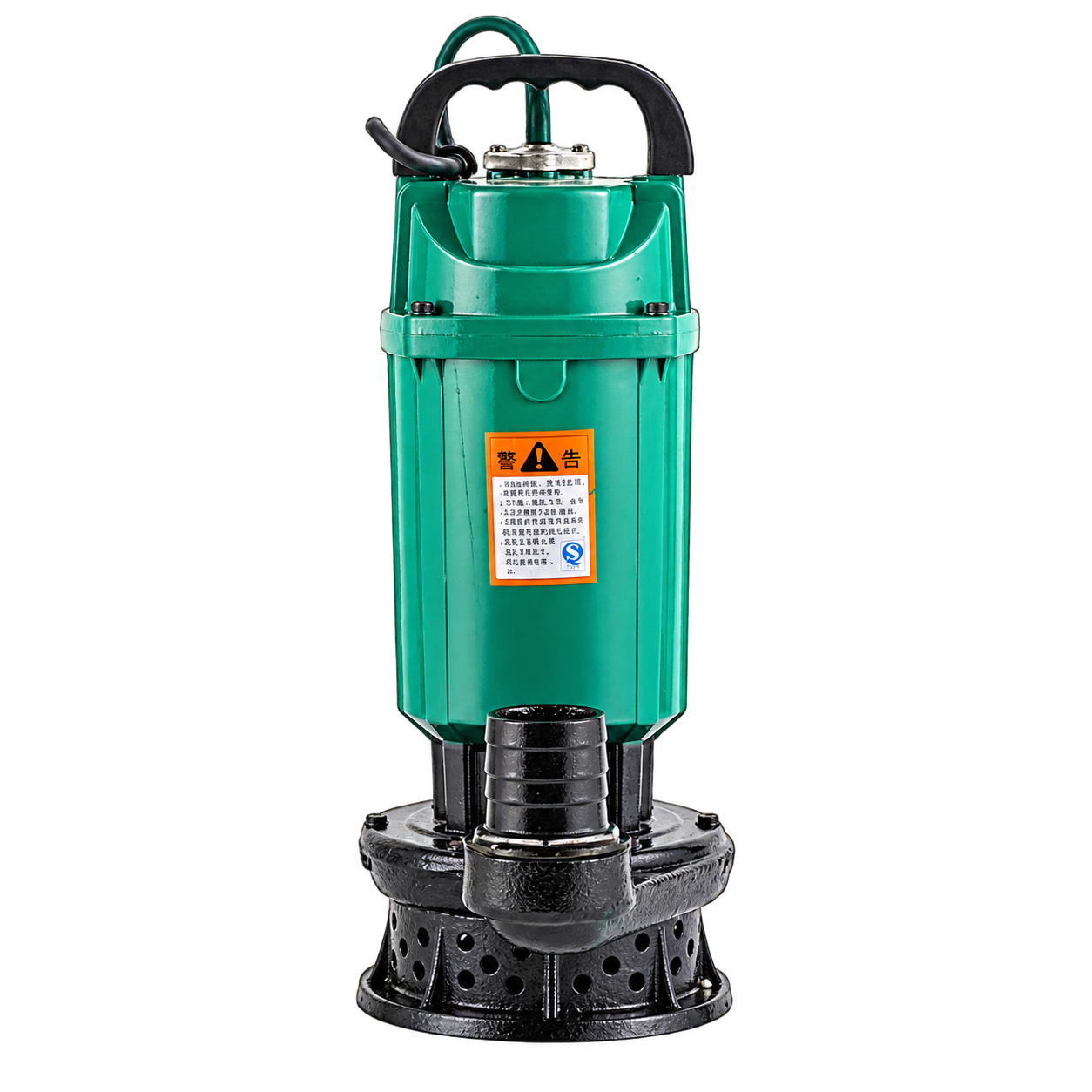

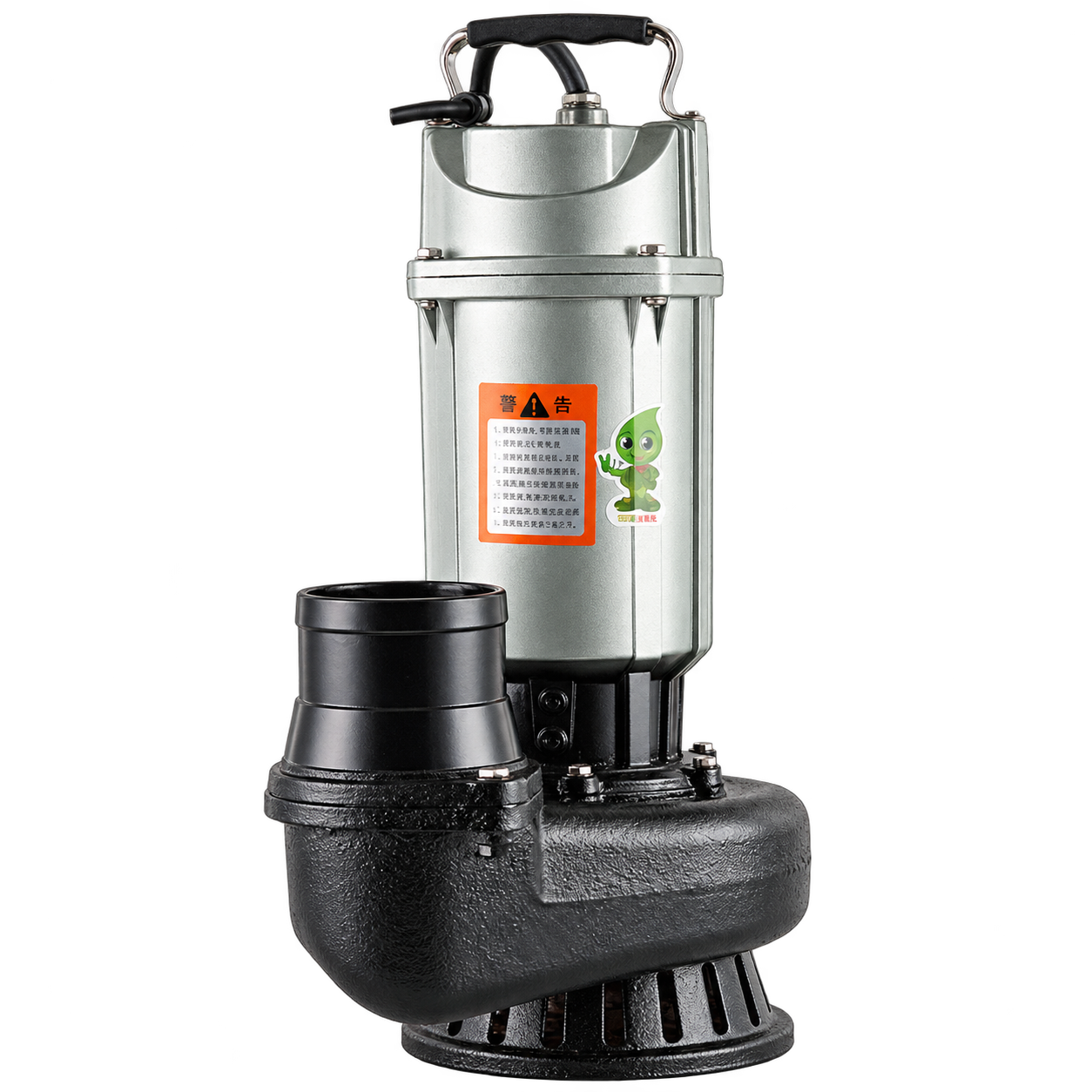

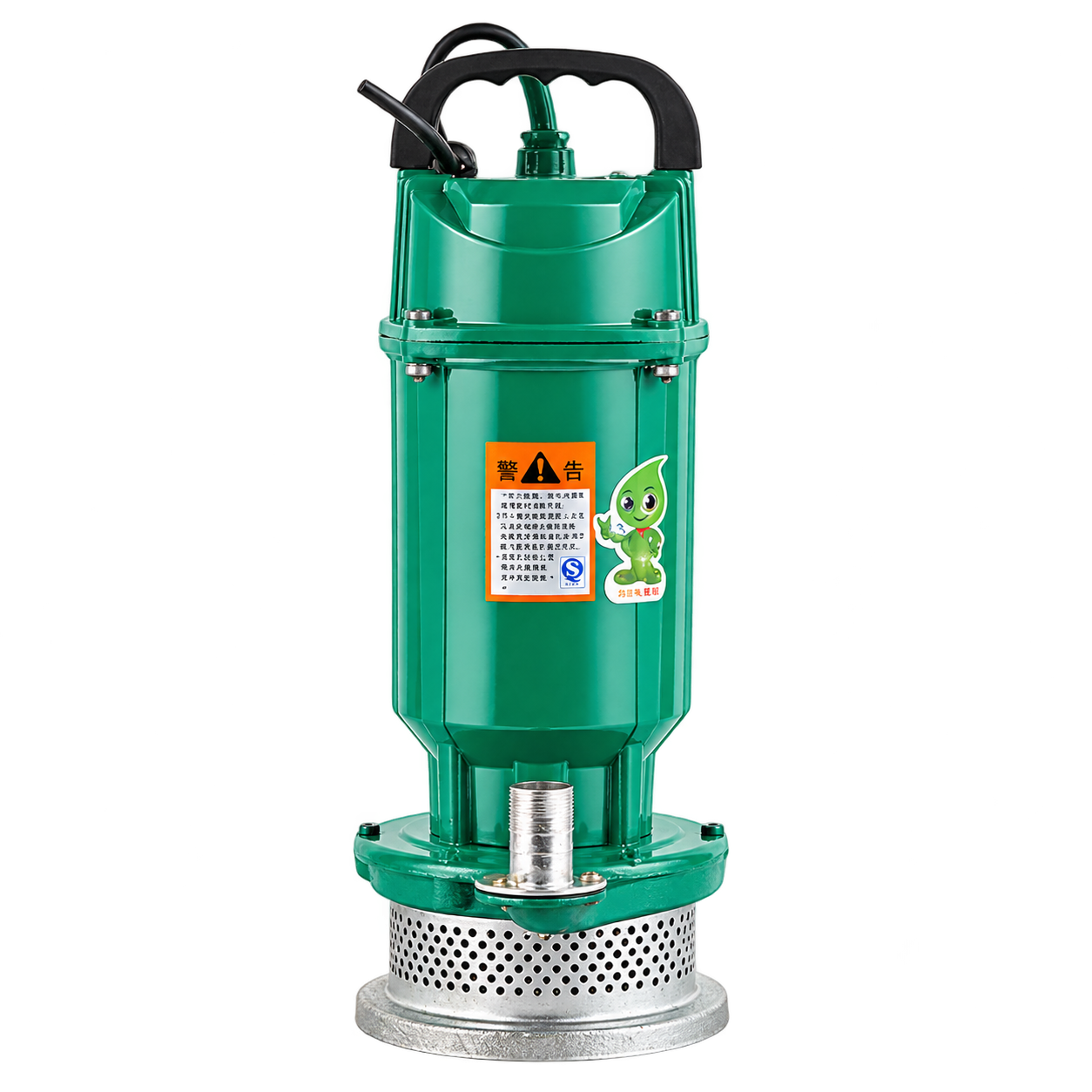

Product gallery

Representative configurations.

Appearance, labels, controller and supplied accessories can vary by model and order scope.

Technical data

Models from the supplied catalogue.

Values below are transcribed from the supplied source deck. A slash indicates multiple published values. Confirm the final datasheet and certified curve in the quotation.

Range 01

QDX SUBMERSIBLE PUMP -DN25

5 listed models

Model	Power(kW)	MAX Q(m³/h)	MAX H(m)	Voltage(V)	PowerCord(m)
QDX1.5-16-0.37	0.37	1.5/3	16/15	220	3
QDX1.5-20-0.55	0.55	1.5/3	20/18	220	5
QDX1.5-26-0.75	0.75	1.5/3	26/23	220	5
QDX3-26-1.1	1.1	3/4.5	29/32	220	10
QDX3-32-1.5	1.5	3/4.5	32/40	220	10

Model performance referenceCurves start at Q = 0

Indicative curves are constructed from the supplied maximum head at Q = 0 and maximum flow at H = 0. Confirm the certified model curve before final selection.

Range 02

QDX SUBMERSIBLE PUMP -DN50

5 listed models

Model	Power(kW)	MAX Q(m³/h)	MAX H(m)	Voltage(V)	PowerCord(m)
QDX10-15-0.75	0.75	10	15	220/380	10
QDX15-18-1.1	1.1	15	18	220/380	10
QDX18-23-1.5	1.5	18	23	220/380	10
QDX18-25-1.8	1.8	18	25	220/380	10
QDX25-25-2.2	2.2	25	25	220/380	10

Model performance referenceCurves start at Q = 0

Indicative curves are constructed from the supplied maximum head at Q = 0 and maximum flow at H = 0. Confirm the certified model curve before final selection.

Range 03

QDX SUBMERSIBLE PUMP -DN75

5 listed models

Model	Power(kW)	MAX Q(m³/h)	MAX H(m)	Voltage(V)	Power cord(m)
QDX40-8-1.1	1.1	40	8	180-240V/380-415V	10
QDX45-12-1.5	1.5	45	12	180-240V/380-415V	10
QDX50-15-1.8	1.8	50	15	180-240V/380-415V	10
QDX60-18-2.2	2.2	60	18	180-240V/380-415V	10
QDX60-25-2.2A	2.2A	60	25	180-240V/380-415V	10

Model performance referenceCurves start at Q = 0

Indicative curves are constructed from the supplied maximum head at Q = 0 and maximum flow at H = 0. Confirm the certified model curve before final selection.

Range 04

QDX SUBMERSIBLE PUMP -DN100

5 listed models

Model	Power(kW)	MAX Q (m³/h)	MAX H(m)	Voltage(V)	Power cord(m)
QDX65-10-1.8	1.8	65	10	180-240V/380-415V	10
QDX80-12-2.2	2.2	80	12	180-240V/380-415V	10
QDX90-15-3	3	90	15	180-240V/380-415V	10
QDX80-20-2.2A	2.2A	80	20	180-240V/380-415V	10
QDX90-25-3A	3A	90	25	180-240V/380-415V	10

Model performance referenceCurves start at Q = 0

Indicative curves are constructed from the supplied maximum head at Q = 0 and maximum flow at H = 0. Confirm the certified model curve before final selection.
